Plates 68 C&D

Plates 68 C & D

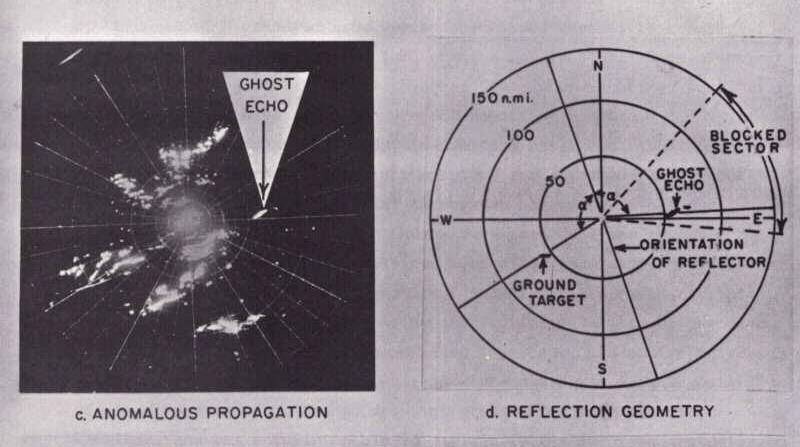

Reflection echo during anomalous propagation conditions

c. Anomalous Propagation
d. Reflection Geometry

NOTE: In the original report, Plates 68A through 68D were all displayed on a single page. For easier web-viewing, they have been separated into two pairs of images: A-B and C-D.
