Plates 68 A&B

Plates 68 A & B

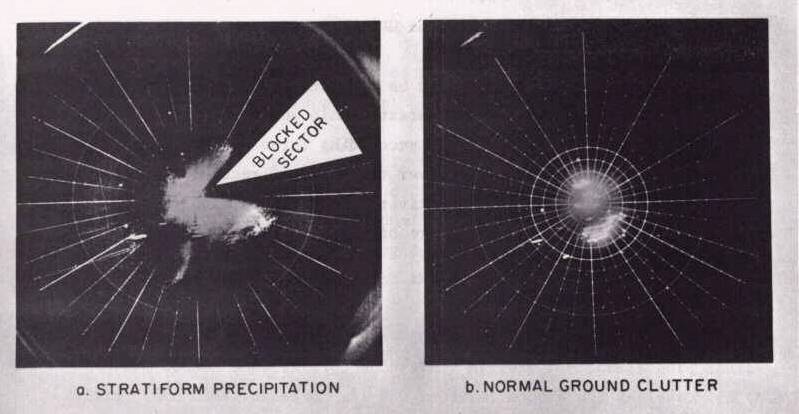

Reflection echo during anomalous propagation conditions

a. Stratiform Precipitation
b. Normal Ground Clutter

NOTE: In the original report, Plates 68A through 68D were all displayed on a single page. For easier web-viewing, they have been separated into two pairs of images: A-B and C-D.
